Replacing the iPad 7 Digitizer or iPad 8 Digitizer can be a bit of a task, but it's definitely doable with the right tools and guidance. Here's a general overview of the process:
Tools You'll Need:

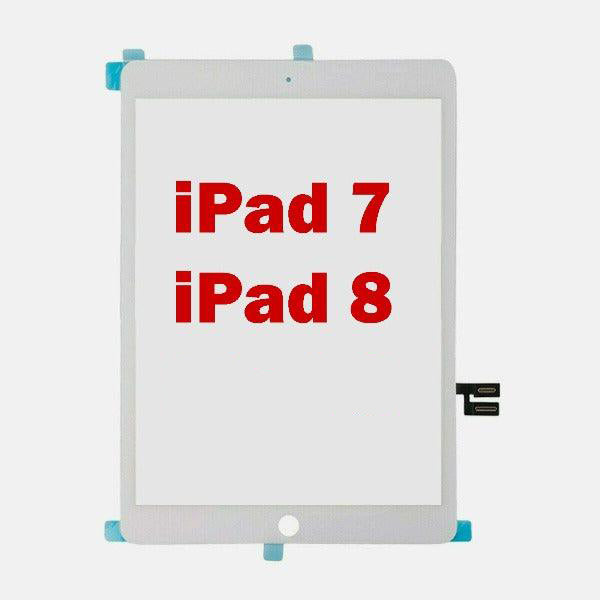

- New digitizer (make sure it’s compatible with your iPad model), Please check it here https://www.cellphonepartscanada.com/collections/ipad-7
- Heat gun or hairdryer
- Plastic prying tools
- Small screwdrivers (usually Pentalobe and Phillips)
- Suction cup
- Tweezers
- Adhesive strips or glue
- Isopropyl alcohol (for cleaning)
Steps for Replacement:
-
Power Off Your iPad:
- Before starting, make sure the device is completely powered off to avoid any electrical issues.
-
Remove the Screen:
- Use a heat gun or hairdryer to gently heat the edges of the screen. This softens the adhesive, making it easier to remove.
- Use a suction cup to lift the screen slightly. Insert a plastic prying tool into the gap to carefully separate the screen from the frame. Be cautious with the home button and front camera connectors.
-
Disconnect the Battery:
- Once you’ve lifted the screen enough, locate and disconnect the battery to avoid any short circuits. This usually involves removing screws and gently prying off connectors.
-
Remove the Broken Digitizer:
- Disconnect the digitizer cables from the logic board. There may be multiple connectors, so make sure to keep track of where each one goes.
- Carefully remove any adhesive or glue residues from the frame.
-
Install the New Digitizer:
- Connect the new digitizer to the logic board, ensuring all connectors are securely attached.
- Reconnect the battery.
-
Reassemble the iPad:
- Before sealing everything, test the new digitizer to make sure it works correctly.
- If everything is functioning, carefully press the screen back into place.
- Secure the screen by replacing any screws or adhesive strips.
-
Power On and Test:
- Power on your iPad and test the new digitizer thoroughly to ensure it’s working as expected.
Tips:
- Be Gentle: The components inside are delicate, so handle everything with care.
- Consult a Guide: If you’re unsure about any step, look up a specific guide for your iPad model. Websites like iFixit have detailed repair guides.
- Professional Help: If you’re uncomfortable with the process or if your iPad is under warranty, consider having the replacement done by a professional.
Good luck with your repair! If you have any specific questions about the process or run into issues, feel free to ask.
